SiC碳化硅肖特基二极管
慧制敏造半导体
SiC碳化硅功率半导体系统方案提供商
碳化硅二极管
产品优势：超低漏电流，耐高温
产品应用：PFC线路，太阳能/风能发电用的DC/AC逆变器，不间断电源UPS，电机马达驱动装置等
| Number |
Part Number |
VDC |
IF (Tc=150℃) |
Package |
| 1 |
KN3D06065N* |
650V |
6A |
DFN 5×6 |
| 2 |
KN3D10065N |
650V |
10A |
DFN 5×6 |
| 3 |
KN3D06065G* |
650V |
6A |
DFN 8×8 |
| 4 |
KN3D10065G* |
650V |
10A |
DFN 8×8 |
|
| 1 |
KN3D02065A* |
650V |
2A |
TO-220-2 |
| 2 |
KN3D03065A |
650V |
3A |
| 3 |
KN3D04065A |
650V |
4A |
| 4 |
KN3D06065A* |
650V |
6A |
| 5 |
KN3D08065A |
650V |
8A |
| 6 |
KN3D10065A* |
650V |
10A |
| 7 |
KN3D15065A* |
650V |
15A |
| 8 |
KN3D20065A* |
650V |
20A |
| 9 |
KN3D30065A |
650V |
30A |
|
| 1 |
KN3D10065H* |
650V |
10A |
TO-247-2 |
| 2 |
KN3D15065H |
650V |
15A |
TO-247-2 |
| 3 |
KN3D20065H* |
650V |
20A |
TO-247-2 |
| 4 |
KN3D30065H* |
650V |
30A |
TO-247-2 |
| 5 |
KN3D40065H* |
650V |
40A |
TO-247-2 |
| 6 |
KN3D50065H |
650V |
50A |
TO-247-2 |
|
| 1 |
KN3D15065D* |
650V |
15A |
TO-247-3 |
| 2 |
KN3D20065D* |
650V |
20A |
TO-247-3 |
| 3 |
KN3D30065D |
650V |
30A |
TO-247-3 |
| 4 |
KN3D40065D |
650V |
40A |
TO-247-3 |
| 5 |
KN3D60065D |
650V |
60A |
TO-247-3 |
|
| 1 |
KN3D06065F* |
650V |
6A |
TO-252-2L |
| 2 |
KN3D08065F |
650V |
8A |
TO-252-2L |
| 3 |
KN3D10065F* |
650V |
10A |
TO-252-2L |
|
| 1 |
KN3D03065E |
650V |
3A |
TO-263-2L |
| 2 |
KN3D04065E |
650V |
4A |
TO-263-2L |
| 3 |
KN3D06065E |
650V |
6A |
TO-263-2L |
| 4 |
KN3D08065E |
650V |
8A |
TO-263-2L |
| 5 |
KN3D10065E* |
650V |
10A |
TO-263-2L |
| 6 |
KN3D15065E |
650V |
15A |
TO-263-2L |
| 7 |
KN3D20065E |
650V |
20A |
TO-263-2L |
| 8 |
KN3D30065E |
650V |
30A |
TO-263-2L |
| Number |
Part Number |
VDC |
IF (Tc=150℃) |
Package |
| 1 |
KN3D30090H* |
900V |
30A |
TO-247-2 |
| 2 |
KN3D42090H |
900V |
42A |
TO-247-2 |
| Number |
Part Number |
VDC |
IF (Tc=150℃) |
Package |
| 1 |
KN3D02120A |
1200V |
2A |
TO-220-2 |
| 2 |
KN3D05120A* |
1200V |
5A |
TO-220-2 |
| 3 |
KN3D06120A |
1200V |
6A |
TO-220-2 |
| 4 |
KN3D08120A |
1200V |
8A |
TO-220-2 |
| 5 |
KN3D10120A* |
1200V |
10A |
TO-220-2 |
| 6 |
KN3D15120A |
1200V |
15A |
TO-220-2 |
| 7 |
KN3D20120A* |
1200V |
20A |
TO-220-2 |
|
| 1 |
KN3D10120H |
1200V |
10A |
TO-247-2 |
| 2 |
KN3D15120H* |
1200V |
15A |
TO-247-2 |
| 3 |
KN3D20120H* |
1200V |
20A |
TO-247-2 |
| 4 |
KN3D30120H* |
1200V |
30A |
TO-247-2 |
| 5 |
KN3D40120H |
1200V |
40A |
TO-247-2 |
| 6 |
KN3D50120H |
1200V |
50A |
TO-247-2 |
|
| 1 |
KN3D10120D |
1200V |
10A |
TO-247-3 |
| 2 |
KN3D12120D |
1200V |
12A |
TO-247-3 |
| 3 |
KN3D16120D |
1200V |
16A |
TO-247-3 |
| 4 |
KN3D20120D* |
1200V |
20A |
TO-247-3 |
| 5 |
KN3D30120D |
1200V |
30A |
TO-247-3 |
| 6 |
KN3D40120D |
1200V |
40A |
TO-247-3 |
| 7 |
KN3D60120D |
1200V |
60A |
TO-247-3 |
|
| 1 |
KN3D10120F |
1200V |
10A |
TO-252-2L |
| 2 |

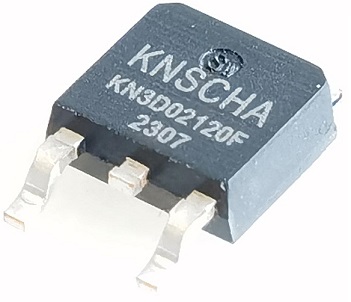

KN3D02120F* |
1200V |
2A |
| 3 |
KN3D06120F* |
1200V |
6A |
| Number |
Part Number |
VDC |
IF (Tc=150℃) |
Package |
| 1 |
KN3D12170D |
1700V |
12A |
TO-247-3 |
以上规格仅供参考，带*规格为常用出货，可以直接下载规格书，其他规格需要规格书请咨询我们营业索取！
我们可以根据客户要求定设计碳化硅二极管及封装，性能对标国际一线，国产成熟替代。邮箱：sales@knscha.com
